Description

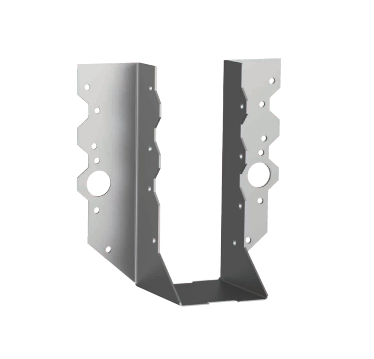

Our Galvanised Joist Hangers provide a strong and reliable connection point for joining joists to beams, rafters to fascias, trusses to beams, and beams to masonry. Made from G300 structural steel with a Z275 galvanised finish, these brackets are engineered to meet AS 1720.1 standards for structural integrity.
Applications
- Connects joists to beams
- Fixes rafters to fascias
- Secures floor trusses to beams
- Anchors beams to masonry
Features
- Manufactured from G300 Structural Steel
- Z275 galvanised finish for corrosion resistance
- Fast fixing method – no pre-drilling required
- Compatible with 2.8mm nails or M12 bolts
- Available in a range of sizes to suit your project
Size Table
| Part Number | QFind | Nail Size (Ø mm) | Width W (mm) | Length L (mm) | Thickness T (mm) | Depth D (mm) |
|---|---|---|---|---|---|---|
| HHJMGD-035090 | GD-035090 | 2.8 | 100 | 55 | 35 | 83.5 |
| HHJMGD-035120 | GD-035120 | 2.8 | 100 | 55 | 35 | 120.0 |
| HHJMGD-035190 | GD-035190 | 2.8 | 100 | 55 | 35 | 182.0 |
| HHJMGD-045090 | GD-045090 | 2.8 | 110 | 55 | 45 | 76.0 |
| HHJMGD-045120 | GD-045120 | 2.8 | 110 | 55 | 45 | 110.0 |
| HHJMGD-045140 | GD-045140 | 2.8 | 110 | 55 | 45 | 130.0 |
| HHJMGD-045190 | GD-045190 | 2.8 | 110 | 55 | 45 | 175.0 |
| HHJMGD-050090 | GD-050090 | 2.8 | 115 | 55 | 50 | 90.0 |
| HHJMGD-050120 | GD-050120 | 2.8 | 115 | 55 | 50 | 110.0 |
| HHJMGD-050140 | GD-050140 | 2.8 | 115 | 55 | 50 | 130.0 |
| HHJMGD-050190 | GD-050190 | 2.8 | 115 | 55 | 50 | 175.0 |
