Description

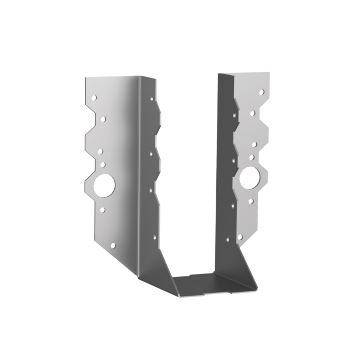

316 Stainless Steel Joist Hangers are engineered for long-lasting structural support in corrosive and outdoor environments. Made from A4 stainless steel, they offer exceptional resistance to rust and moisture while ensuring reliable load transfer between beams and joists.
Features
- Manufactured from A4 316 Stainless Steel for superior corrosion protection
- Designed in accordance with AS 1720.1 for reliable load capacity
- Fast and easy fixing with no pre-drilling required
- Suitable for timber-to-timber or timber-to-masonry applications
- Available in a range of widths, thicknesses, and depths
Applications
- Connecting joists to beams
- Rafters to fascias
- Floor trusses to beams
- Beams to masonry
- Ideal for outdoor, coastal, and marine environments
Material & Finish
- Material: A4 316 Stainless Steel
- Finish: 316 Stainless
Fixing Sizes
- Small Hole: 3.0 – 3.1 mm (For 2.8 mm Nail)
- Large Hole: 13.0 – 13.2 mm (For M12 Bolt)
Size Table
| Part Number | QFind | Nail Size Ø (mm) (d) | Width (mm) (W) | Length (mm) (L) | Thickness (mm) (T) | Depth (mm) (D) |
|---|---|---|---|---|---|---|
| HHJ16D-035090 | 6D-035090 | 2.8 | 100 | 55 | 35 | 83.5 |
| HHJ16D-035120 | 6D-035120 | 2.8 | 100 | 55 | 35 | 120.0 |
| HHJ16D-035190 | 6D-035190 | 2.8 | 100 | 55 | 35 | 182.0 |
| HHJ16D-045090 | 6D-045090 | 2.8 | 110 | 55 | 45 | 76.0 |
| HHJ16D-045120 | 6D-045120 | 2.8 | 110 | 55 | 45 | 110.0 |
| HHJ16D-045140 | 6D-045140 | 2.8 | 110 | 55 | 45 | 130.0 |
| HHJ16D-045190 | 6D-045190 | 2.8 | 110 | 55 | 45 | 175.0 |
| HHJ16D-050090 | 6D-050090 | 2.8 | 115 | 55 | 50 | 76.0 |
| HHJ16D-050120 | 6D-050120 | 2.8 | 115 | 55 | 50 | 110.0 |
| HHJ16D-050140 | 6D-050140 | 2.8 | 115 | 55 | 50 | 130.0 |
| HHJ16D-050190 | 6D-050190 | 2.8 | 115 | 55 | 50 | 175.0 |
