Description

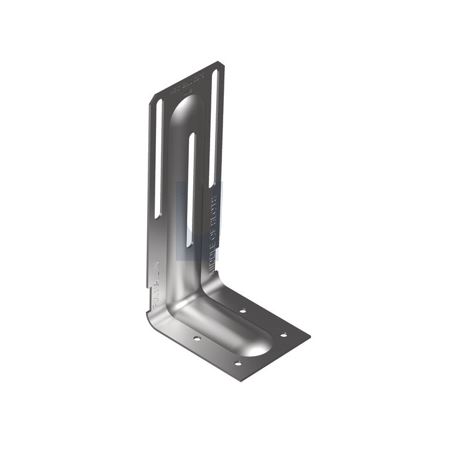

Galvanised Internal Wall Bracket – Reliable Structural Timber Connection
This galvanised internal wall bracket is designed for secure fixing of internal timber wall frames, providing strength and stability in structural applications. Manufactured from Z275 galvanised steel, it offers reliable corrosion resistance for internal building environments.
Built to comply with AS1684 requirements, this bracket ensures consistent performance in residential and light commercial construction.
Applications
- Internal timber wall framing
- Stud-to-plate connections
- Structural timber fixing
- Residential construction
- Light commercial framing
Features & Benefits
- Galvanised Z275 coating for corrosion resistance
- Designed for internal structural applications
- Complies with AS1684 (6.2.5.2)
- Pre-punched holes for easy installation
- Strong, rigid bracket design for reliable load transfer
- Suitable for timber framing applications
Variations
- 110 x 45 x 40mm (single size available)
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Internal Wall Bracket |
| Material | Steel |
| Finish | Galvanised Z275 |
| Standard | AS1684 (6.2.5.2) |

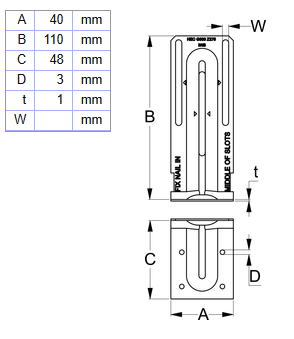

| Size | 110 x 45 x 40 mm |
| Thickness (t) | 1 mm |
| Width (A) | 40 mm |
| Height (B) | 110 mm |
| Depth (C) | 48 mm |
| Hole Diameter (D) | 3 mm |
| Application | Timber Framing (Internal) |
