Description

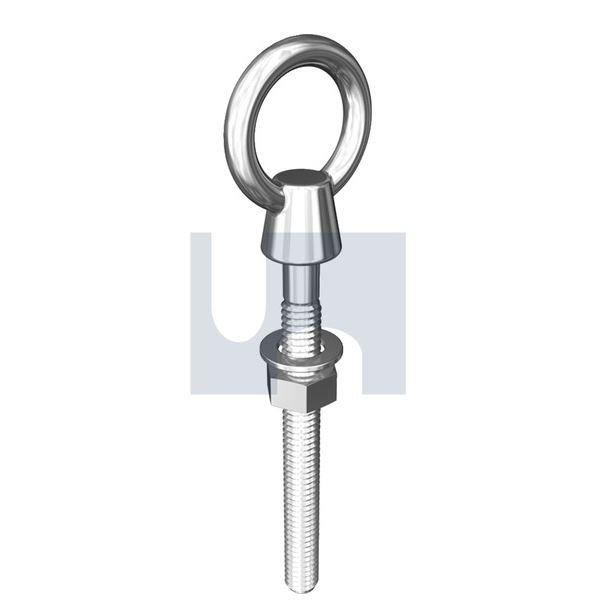

316 Stainless Steel Collar Eye Bolt Kit – Non-Lifting Type
The 316 Stainless Steel Collar Eye Bolt Kit is designed for fixing, bracing, and securing components in marine, outdoor, and industrial environments. Each kit includes an eye bolt, nut, and washer made from high-grade 316 stainless steel for exceptional corrosion resistance. These are not rated or certified for lifting applications.
Applications
- Securing cables, chains, or tensioning assemblies
- Marine and outdoor hardware connections
- General fixing where corrosion resistance is required
Features
- Manufactured from 316 Stainless Steel for maximum corrosion protection
- Supplied complete with nut and washer
- Collar design provides neat finish and improved load distribution
- Not rated or approved for lifting
Material & Finish
- Material: 316 Stainless Steel
- Finish: Polished Stainless
- Type: Non-Lifting Eye Bolt Kit
Available Sizes
M6 | M8 | M10 | M12
Specifications
| Part | QFind | Description | Size | Length (mm) | Finish |
|---|---|---|---|---|---|
| HEC16KM060060 | – | 316 Eyebolt Collar Kit: M6 x 60 | M6 | 60 | 316 Stainless |
| HEC16KM080080 | – | 316 Eyebolt Collar Kit: M8 x 80 | M8 | 80 | 316 Stainless |
| HEC16KM100100 | – | 316 Eyebolt Collar Kit: M10 x 100 | M10 | 100 | 316 Stainless |
| HEC16KM100120 | – | 316 Eyebolt Collar Kit: M10 x 120 | M10 | 120 | 316 Stainless |
| HEC16KM120120 | – | 316 Eyebolt Collar Kit: M12 x 120 | M12 | 120 | 316 Stainless |
