Cup Head Bolt Metric Grade 316 Stainless Steel

From $20.90

316 Stainless Steel Cup Head Bolts (DIN 603). Diameters M6–M16 with extensive length options (20–350 mm). Marine-grade 316 corrosion resistance.

Description
Additional information

Description

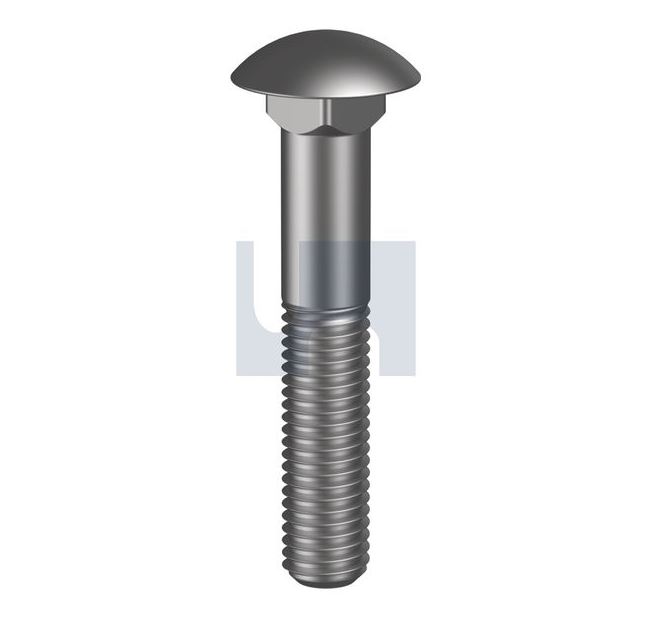

316 Stainless Cup Head Bolts — DIN 603

Marine-grade 316 stainless steel cup head (carriage) bolts to DIN 603. Available in diameters M6–M16 and supplied in a wide range of lengths.

Key points

Material: 316 Stainless Steel
Standard: DIN 603 (Cup Head / Carriage Bolt)
Diameters: M6, M8, M10, M12, M16

Click a diameter to expand and view the full list of part numbers and lengths.

M6 — lengths 20–80 mm

Part Number	Size	Length (mm)
BC16PCM060020	M6	20
BC16PCM060025	M6	25
BC16PCM060030	M6	30
BC16PCM060040	M6	40
BC16PCM060050	M6	50
BC16PCM060060	M6	60
BC16PCM060070	M6	70
BC16PCM060080	M6	80

M8 — lengths 20–100 mm

Part Number	Size	Length (mm)
BC16PCM080020	M8	20
BC16PCM080025	M8	25
BC16PCM080030	M8	30
BC16PCM080040	M8	40
BC16PCM080050	M8	50
BC16PCM080060	M8	60
BC16PCM080080	M8	80
BC16PCM080100	M8	100

M10 — lengths 25–130 mm

Part Number	Size	Length (mm)
BC16PCM100025	M10	25
BC16PCM100030	M10	30
BC16PCM100040	M10	40
BC16PCM100050	M10	50
BC16PCM100060	M10	60
BC16PCM100070	M10	70
BC16PCM100080	M10	80
BC16PCM100100	M10	100
BC16PCM100120	M10	120
BC16PCM100130	M10	130

M12 — lengths 40–220 mm

Part Number	Size	Length (mm)
BC16PCM120040	M12	40
BC16PCM120050	M12	50
BC16PCM120060	M12	60
BC16PCM120070	M12	70
BC16PCM120080	M12	80
BC16PCM120100	M12	100
BC16PCM120120	M12	120
BC16PCM120130	M12	130
BC16PCM120200	M12	200
BC16PCM120220	M12	220

M16 — lengths 70–350 mm

Part Number	Size	Length (mm)
BC16PCM160070	M16	70
BC16PCM160100	M16	100
BC16PCM160120	M16	120
BC16PCM160140	M16	140
BC16PCM160300	M16	300
BC16PCM160350	M16	350

Additional Information

Size

M6 X 20, M6 X 25, M6 X 30, M6 X 40, M6 X 50, M6 X 60, M6 X 70, M6 X 80, M8 X 20, M8 X 25, M8 X 30, M8 X 40, M8 X 50, M8 X 60, M8 X 80, M8 X 100, M10 X 25, M10 X 30, M10 X 40, M10 X 50, M10 X 60, M10 X 70, M10 X 80, M10 X 100, M10 X 120, M10 X 130, M12 X 40, M12 X 50, M12 X 60, M12 X 70, M12 X 80, M12 X 100, M12 X 120, M12 X 130, M12 X 200, M12 X 220, M16 X 70, M16 X 100, M16 X 120, M16 X 140, M16 X 300, M16 X 350
