Description

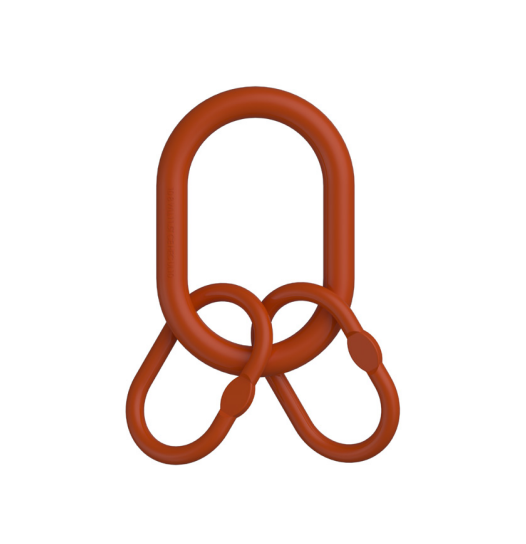

The Grade 100 Master Assembly Link is engineered for superior lifting performance and safety in heavy-duty applications. Designed for use with Grade 100 lifting components, it allows for up to four-leg sling lifts using chain, wire rope, or synthetic slings.
Features:
- Manufactured to HEC 3776 / Grade 100 standards
- Powder coated for durability and visibility
- 100% magnaflux crack detection
- Working load limits (WLL) up to 40 tonnes
- Suitable for multi-leg sling assemblies (0–45° angle)
Applications:
- Lifting with Grade 100 chain slings
- Construction, rigging, and industrial lifting
- Use with wire rope or synthetic sling assemblies
Available Sizes:
8mm (5.0t) | 10mm (7.6t) | 12mm (10.0t) | 16mm (14.0t) | 20mm (25.1t) | 22mm (30.8t) | 26mm (40.0t)
