Description

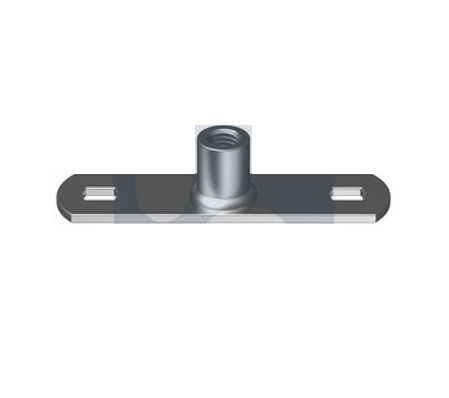

Zinc Plated Mount Plate Centre Nut
The Mount Plate Centre Nut is a reliable fixing solution designed for use in suspension systems, mounting applications, and structural installations where a threaded rod connection is required.
Manufactured from mild steel and finished in zinc plating (RoHS compliant), this mounting plate provides durability and corrosion resistance for indoor use. The integrated centre nut allows threaded rod to be easily secured, making installation efficient and versatile.
With slotted fixing holes for adjustability, this mounting plate is ideal for a wide range of construction, HVAC, and mechanical applications.
🔧 Applications
- Threaded rod suspension systems
- Pipe and cable tray mounting
- HVAC and mechanical services
- Ceiling and wall mounting
- General construction and framing
⭐ Features & Benefits
- Integrated centre nut for threaded rod connection
- Zinc plated finish for corrosion resistance
- Strong mild steel construction
- Slotted holes for adjustable fixing
- Quick and easy installation
- Suitable for multiple mounting applications
📏 AVAILABLE SIZES
M10 | M12
📊 TECHNICAL SPECIFICATIONS
| Property | Specification |
|---|---|
| Product Type | Mounting Plate Centre Nut |
| Material | Mild Steel |
| Finish | Zinc Plated (RoHS Compliant) |
| Sizes | M10, M12 |
| Specification | HEC |
| Application | Suspension & Mounting |
📐 DIMENSIONS
M10
- M: M10
- A: 10mm
- B: 7mm
- D: 16mm
- W: 25mm
- H: 19mm
- T: 3.0mm
- L: 100mm
M12
- M: M12
- A: 10mm
- B: 7mm
- D: 19mm
- W: 25mm
- H: 20mm
- T: 3.0mm
- L: 100mm
📦 PRODUCT DATA
| Size | Part Number | QFind |
|---|---|---|
| M10 | PHSMSZHMC M10 | H1200A-M10 |
| M12 | PHSMSZHMC M12 | H1200A-M12 |
